WINDOW DESIGN SOFTWARE

The Definitive Guide in 2024

This is the definitive guide to window design software.

In this new guide you’ll learn:

  • how to register the window design software online from the beginning
  • how to use the window design software
  • share order details to clients
    Lots more

Let’s get started.

window design software online tools

Window Design Software Contents

Chapter 1

User Login

Chapter 2

Account Setting

Chapter 3

Window Drawing Tools

Chapter 4

Window Design

Chapter 5

Casment Window Drawing

Chapter 6

Sliding Window Drawing

Chapter 7

Turncorner Window Drawing

Chapter 8

Door Drawing

Chapter 9

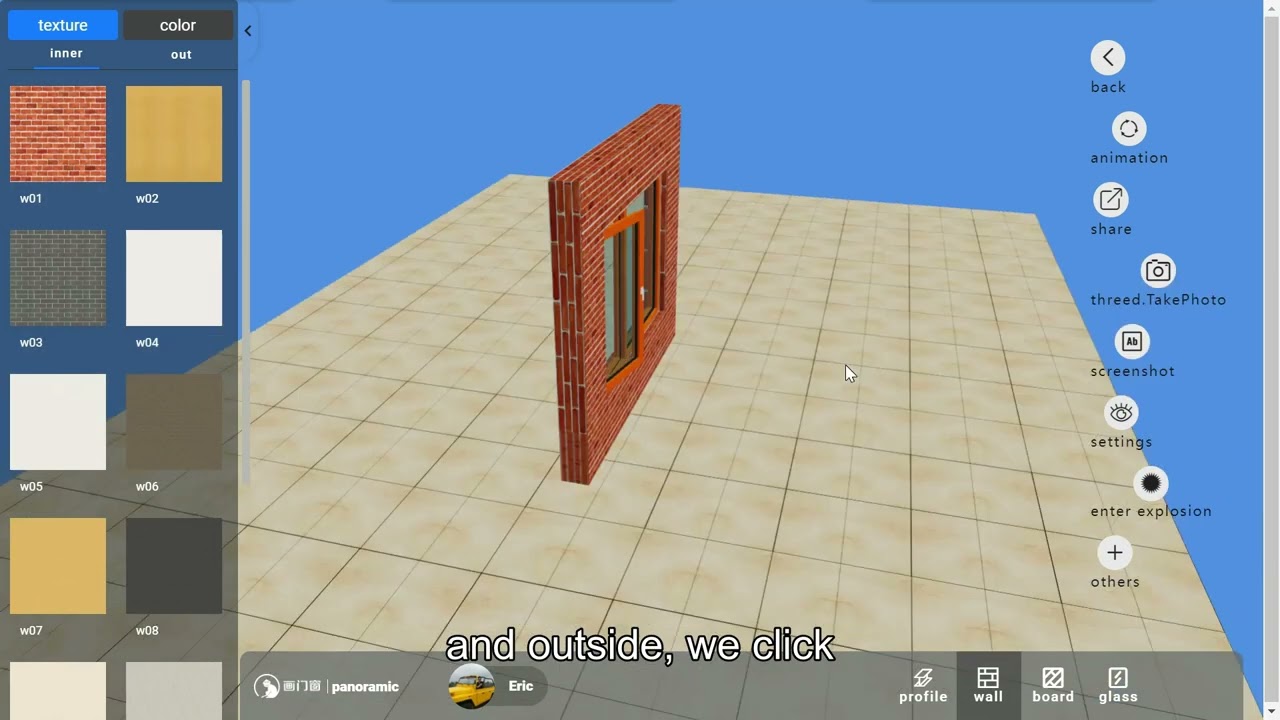

3D Rendering

Chapter 10

Create Project for Customer

Chapter 11

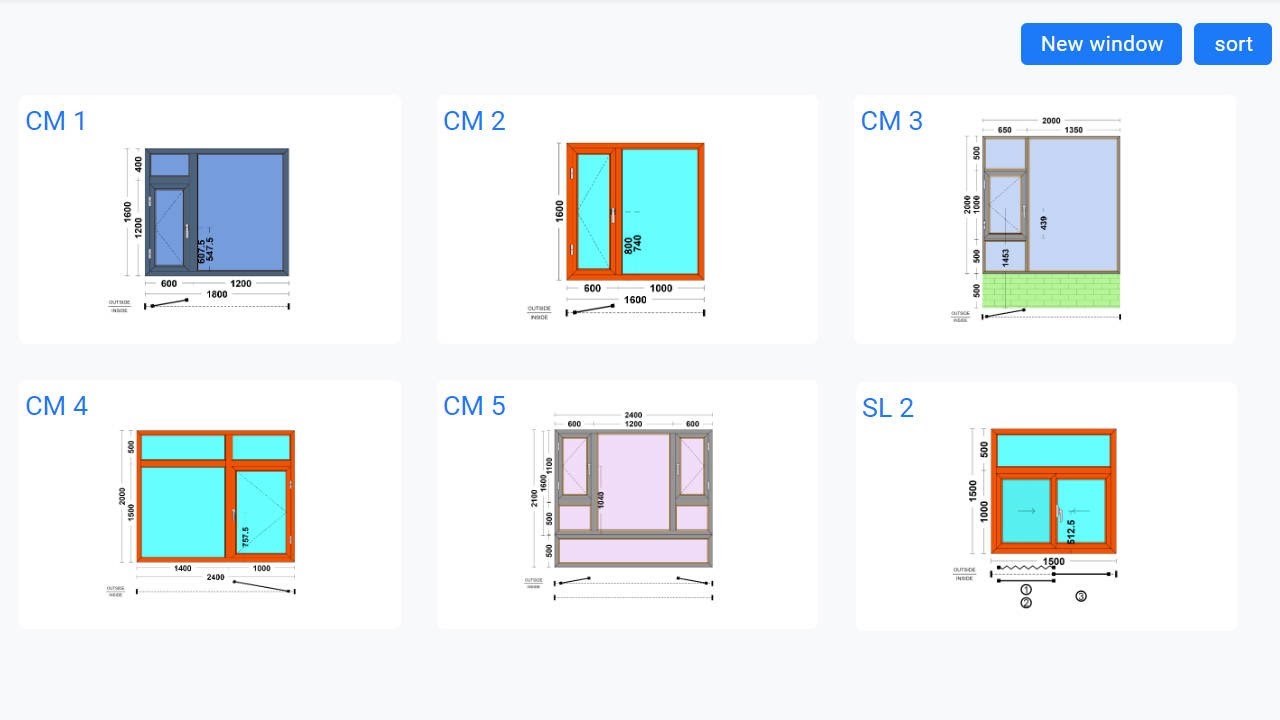

Create Window Library

Chapter 12

Window Quotation

Chapter 13

Printing & Share

Chapter 14

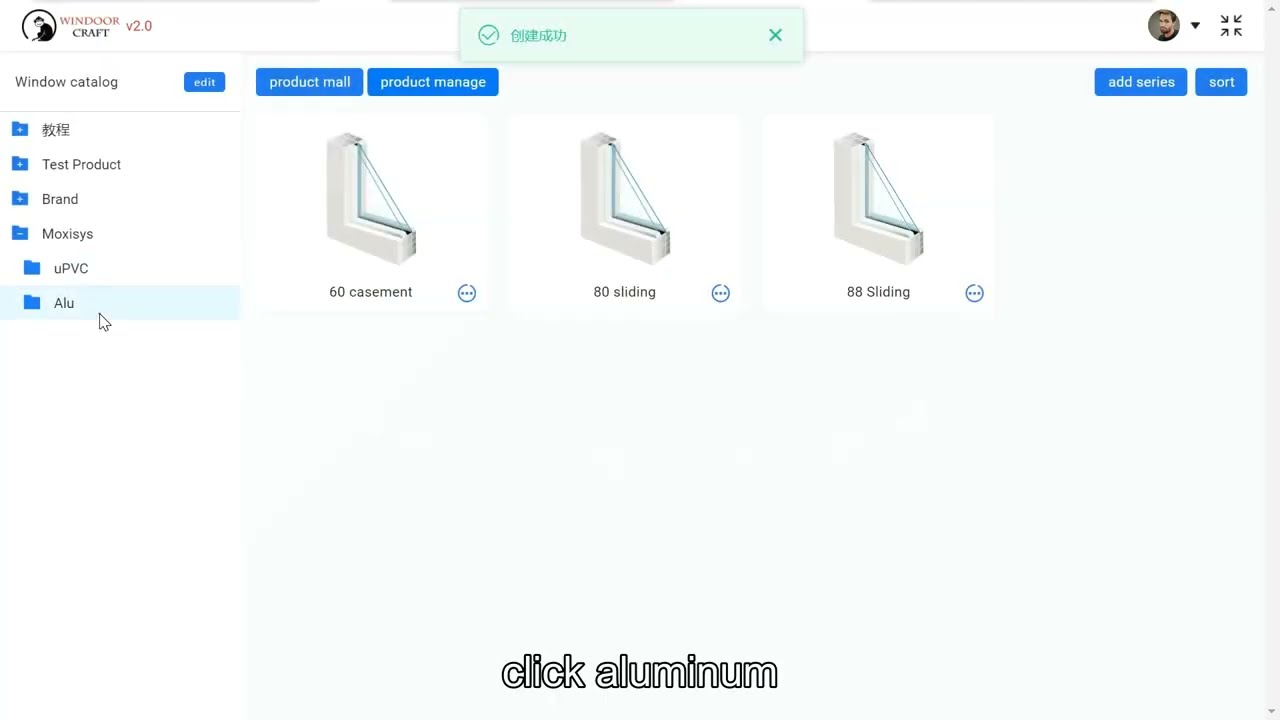

Add Product Series

Chapter 15

Preset Data

Chapter 16

Material List Template

Chapter 17

Intelligent Quotation & Material List

Chapter 18

Software Price List

Chapter 19

Video Gallery

Chapter 1

Window Design Software User Login

Let’s get started with the window design software free step by step as below:

Step 1

Open the window designer software website by clicking here below.

You will see the window design tool login interface below:

window design software free register interface

Step 2

  1. choose English Version
  2. Input the account number which we send you.
  3. Input the password which we send you.
  4. Then Click the online window designer login.
online window designer login

You will see the window designer software interface as below.

window designer software interface

There are several modules in the window designer software interface. And we will introduce them later.

Note: If you want to buy thsi window design tool after your trial, please contact us directly.

Please check the video below:

Chapter 2

Account Setting

Click the account module to do relative window design app free account setting.

This window design app free trial for 3 days

window design app free account setting

After clicking the above red arrow “account”. You will see the below interface.

Please do the relative change according to the new window design pictures below.

new window design pictures

The last is the company information setting. This window design toll company setting information will show on the printing page or quotation sheet.

window design tool company setting

Note: This window design tool company setting information only could be changed by the paid user.

The other item is not a very important setting. Please check accordingly by yourself.

Please check the video below:

Chapter 3

Window Drawing Tools

Click the Design module to activate the window visualizer app.

Please see the below red arrow.

window visualizer app active moudule

After clicking the above window visualizer app red arrow “design”. You will see the below window visualizer tool interface.

window visualizer tool interface

In the window visualizer tool left part, you will see most drawing tools of the new window visualizer.

Below are the frame tools of the new window visualizer.

new window visualizer frame tools

Below are other tools of the home window visualizer.

mullion tools of home window visualizer

Mullion tools

casement sash tools of free window visualizer app

Casement sash tools

sliding tools campare with andersen window visualizer

Sliding tools

filling tools with pella window visualizer

Filling tools

dimensioning tools of window visualiser upload photo uk

Dimensioning tools

other tools of window shutter visualizer

The other tools

Above is all the window visualizer tools, We could use them according different quirements.

Please check the video below:

Chapter 4

Window Design

Click the Design module to activate the window visualizer app.

Please see the below red arrow.

window visualizer app active moudule

After clicking, you will see the below window display design software interface.

window display design software interface

The way to design the windows is very easy.

Normally the steps are Frame —-> Mullion —->Sash

Step 1: Frame Drawing

The first step is clicking the frame menu on the left.

Then choose the frame type you want to draw.

Last click in the blank workplace.

Please check the below window display design software frame drawing.

window display design software frame drawing

Step 2: Mullion Drawing

Choose the mullion menu on the left side.

Choose the mullion types you want to draw.

Click where you want to put the mullion.

Please check the below window display design software mullion drawing.

window display design software mullion drawing

Step 3: Sash Drawing

Choose the casement sash or sliding sash menu on the left side.

Choose the sash types you want to draw.

Click where you want to put the sash.

Please check the below window display design software sash drawing.

window display design software sash drawing

Shape Changing

This window manufacturing software is very easy to change the shape.

Click the frame or mullion, there will be three red points on each side.

Drag it to get the shape you want.

Please check the picture below:

window manufacturing software

Dimension Setting

After drawing, there will be size on the window.

But sometimes we want to make our own.

Click the ExtraDim menu on the left.

Choose the styles you want.

Draw it on the window.

Please check the picture below:

window manufacturing software dimension setting

The other Setting

This window manufacturing software could easily set the detailed information.

Please check the information box in the right place.

You could change the window color, glass color, order info, and so on.

By clicking the sash,  you could change the handle, hinges, glass and so on.

Please check the picture below:

window manufacturing software details info

The above is only a simple introduction to the window design.

Using this aluminum, wood, and uPVC window designer online, you could design many types of windows and doors you want.

Below are some windows for your reference.

upvc window designer online

Please check the video below:

Chapter 5

Casment Window Drawing

Login to the window design software online.

Press the design module in the working place.

Please see the below red arrow.

window visualizer app active moudule

After entering the aluminum, wooden, uPVC window design software free workplace.

Please follow the below steps.

Step 1: Frame Drawing

Click the left frame menu, then press the frame types.

Click the mouse left key not release, drag to the frame you want.

Please check the below picture.

casement upvc window design software free

After the frame comes out, change the size in two ways.

The first one is to drag the frame directly by the mouse’s left key.

The second way is double-clicking the numbers and then inputting the numbers.

casement upvc window design software free frame

Step 2: Mullion Drawing

Choose the mullion menu on the left side of the aluminum, wooden, uPVC window design software free workplace.

Choose the mullion types you want to draw.

Click where you want to put the mullion.

Please check below.

casment upvc window design software free mullion

Step 3: Sash Drawing

Choose the casement sash menu on the left side of the aluminum, uPVC and timber window design software.

Choose the sash types you want to draw.

Click where you want to put the sash.

timber window design software sash

You could also choose the sash screen, antitheft screen, or the other types sash.

timber window design software antitheft

You could change the details by clicking the sash.

From the right infobox.

Change the info very easily.

timber window design software parameters

The above introduction could help you better understand drawing the casement windows by the aluminum, uPVC, and timber window design software.

Using this aluminum, uPVC, and timber window design software, you could design many types of windows and doors as you can.

Below are some windows for your reference.

upvc window designer online

Please check the video below:

hqdefault

Chapter 6

Sliding Window Drawing

Login to the window design software online.

Click the design module.

Please see the below red arrow.

window visualizer app active moudule

After entering, Please follow the below steps of the sliding window designer.

Step 1: Frame Drawing

Click the left frame menu, then press the frame types.

Click the mouse left key not release, drag to the frame you want.

sliding window designer frame

After the frame comes out, change the size in two ways.

The first one is to drag the frame directly by the mouse’s left key.

The second way is double-clicking the numbers and then inputting the numbers.

casement upvc window design software free frame

Step 2: Mullion Drawing

Choose the mullion menu on the sliding window designer.

Choose the mullion types you want to draw.

Click where you want to put the mullion.

sliding window designer mullion

Step 3: Sash Drawing

Choose the sliding window designer sash menu on the left side.

Click where you want to put the sash.

sliding window designer sash

You could change the details by clicking the sliding window sash.

From the right infobox.

Change the info very easily.

sliding window designer information

The above introduction could help you better understand the sliding window designer.

Using this sliding window designer software, you could design many types of windows and doors as you can.

Please check the video below:

Chapter 7

Turncorner Window Drawing

Login to the window design software online.

Click the design module.

Please see the below red arrow.

window visualizer app active moudule

After entering, Please follow the below steps of the window design software.

Step 1: Frame Drawing

Click the left frame menu, then press the frame types.

Click the mouse left key not release, drag to the frame you want.

window design software free download frame

After the frame comes out, change the size in two ways.

The first one is to drag the frame directly by the mouse’s left key.

The second way is double-clicking the numbers and then inputting the numbers.

casement upvc window design software free frame

Step 2: Turncorner Drawing

Choose the other menu on the left side.

Click where you want to put.

window design software free download turn corner

After then, click the frame menu on the left to draw another frame.

window design software free download small frame

Step 3: Angle Adjusting

The angle of the turncorner could be adjusted from 90 degrees to 270 degrees.

There are two ways to adjust.

The first one is clicking the bay. It will show 3 red points. Drag the middle point.

The second is double-clicking the number to input.

window design software free download angle

Ater then, you could add other sash to design the sliding or casement window.

Please check the video below:

Chapter 8

KFC Door Drawing

Login to the window door design software online.

Click the design module.

Please see the below red arrow.

window visualizer app active moudule

After entering, Please follow the below steps of the window door design software.

Step 1: Frame Drawing

Click the left frame menu, then press the frame types.

Click the mouse left key in the blank place.

window door design software frame

After the frame comes out, change the size in two ways.

The first one is to drag the frame directly by the mouse’s left key.

The second way is double-clicking the numbers and then inputting the numbers.

casement upvc window design software free frame

Step 2: Mullion Drawing

Choose the mullion menu on the left side of the window door design software.

Click where you want to put it.

window door design software mullion

Step 3: Door Sash Drawing

Choose the door sash menu on the left side.

Click where you want to put the sash.

window door design software sash

You could change the details by clicking the door sash.

From the right infobox.

Here you could change handle, hinges, opening, and so on.

window door design software information

The above introduction could help you better understand the door design.

By using this window door design software, you could design many types of windows and doors as you can.

Please check the video below:

Chapter 9

3D Rendering

Login to the window door design software online.

Click the design module.

Please see the below red arrow.

window visualizer app active moudule

After entering, Please follow the below steps of the 3D window design software.

After drawing the windows, press the menu on the right-up place.

3d window design software menu

After then, you will enter the 3D window design software module.

Here we could do relative settings.

3d window design software background

Click the Setting on the right side.

Then you could choose to show the floor and background.

Click the bottom part in the red frame.

You could change the looking of the profiles, wall, floorboard, and glass.

For example, in the picture above, clicking the board, then you could change it from the left side.

You could also upload a picture of your own or your clients’.

3d window design software upload picture

Change the windows’ size, and places.

In this way, you could give your clients a good presentation with this 3D window design software.

Please check below picture.

3d window design software decoration

Please check the video below:

Chapter 10

Create Project for Customer

How to create a project or contract for your customers?

Please check the video below:

Chapter 11

Create Window Library

How to create a window library?

Please check the video below:

Chapter 12

Window Quotation

Here we will introduce the window and door quotation.

Login to the window door quotation software online.

We will introduce single window door quotation and order quotation.

Single window door quotation

Click the design module as below picture.

window visualizer app active moudule

After entering, we could draw an aluminum window. Click SAVE.

aluminium windows quotation software

Click the aluminium windows quotation software right side box.

Please check the above picture.

Number 1 is the total area for the windows.

Number 2 is the windows quantity.

Number 3 is the price for 1 SQM.

Input the window quantity and price. Then save it.

Click the software for aluminium windows and doors right side box with the Draw label. Please check the below picture.

free software for aluminium windows and doors

Choose the window you want to quote.

Then click red number 3 “to order” as above picture.

You will enter blow interface.

upvc window quotation software

Click the “add quote” button.

You will see the below interface.

free software for doors and windows quotation

Input the relative data for a further quotation for the doors and windows estimating.

estimate for windows and doors

Please see the above picture.

You could add different items or delete the items to estimate for windows and doors.

Order quotation

As a window sales software or window door estimating software, we could change the order quotation easily.

Back to the Home and click the order module.

Then you will see the below interface.

window sales software

Click the detail on the right side.

Then you will see the window door estimating software interface below.

door estimating software

First, click the “view quote”.

Then click the “add quote” button to add the other items.

Please check the video below:

Chapter 13

Printing & Share

Login to the window design software system online.

Click the order module.

Please see the below red arrow.

window software system module

After entering, Please follow the below steps of the window software system.

Choose the Print or Detial according to our requirement.

window software system order

For sharing, choose the detail.

You will get below picture.

window software system print share

Click the share menu above.

You will get the link to the order.

There have two links, you could choose according to your needs.

window software system sharing

Send the link to clients.

Clients could open to review and sign to confirm.

For printing, after you press the print menu.

It will transfer you to the printing module.

window software system printing

You could choose the printing template on the right side.

You could also export different versions for your further changing.

and if you want to do further change. first export to excel version. and then edit in excel.

Please check the video below:

Chapter 14

Add Product Series

How to add window door series products to the window fabrication software?

Please check the video below:

Chapter 15

Preset Data

How to preset window door series product data to this window fabrication software?

Please check the video below:

Chapter 16

Material List Template

How to create a material list template fo to this window manufacturing software?

Please check the video below:

Chapter 17

Intelligent Quotation & Material List

How to calculate the quotation and material list with this window door quote calculation and manufacturing software?

We take a video for the window and door estimating software. and material list of this window manufacturing software.

Please check the video below:

Chapter 18

Software Price List

Below is the Aluminum, wooden, uPVC window design software price list. Please check.

Trial Version

$ 0 3 Days

Free trial 3 days.

  • One account can be used on computer, tablet and phone simultaneously, data will be synchronized automatically
  • design window and door without CAD skill required, casement, sliding and fold are supported
  • Arcs, bay and all kinds of non-rectangular window and door
  • Arcs, compound and other kinds of non-linear mullions
  • Customize window and door
  • Generate design and quotation reports
  • Share design reports
  • Print report and export to PDF file
  • Confirm with electronic signature

Design Version

$ *** Yearly

Contact for Price

  • One account can be used on computer, tablet and phone simultaneously, data will be synchronized automatically
  • design window and door without CAD skill required, casement, sliding and fold are supported
  • Arcs, bay and all kinds of non-rectangular window and door
  • Arcs, compound and other kinds of non-linear mullions
  • Customize window and door
  • Generate design and quotation reports
  • Share design reports
  • Print report and export to PDF file
  • Confirm with electronic signature

Pro Version

$ *** Yearly

Contact for Price

  • One account can be used on computer, tablet and phone simultaneously, data will be synchronized automatically
  • design window and door without CAD skill required, casement, sliding and fold are supported
  • Arcs, bay and all kinds of non-rectangular window and door
  • Arcs, compound and other kinds of non-linear mullions
  • Customize window and door
  • Generate design and quotation reports
  • Share design reports
  • Print report and export to PDF file
  • Confirm with electronic signature
  • Calculate BOM(bill of material)
  • Print BOM and certification report etc
Hot sale !

Team Version

$ *** Yearly

Contact for Price

  • One account can be used on computer, tablet and phone simultaneously, data will be synchronized automatically
  • design window and door without CAD skill required, casement, sliding and fold are supported
  • Arcs, bay and all kinds of non-rectangular window and door
  • Arcs, compound and other kinds of non-linear mullions
  • Customize window and door
  • Generate design and quotation reports
  • Share design reports
  • Print report and export to PDF file
  • Confirm with electronic signature
  • Calculate BOM(bill of material)
  • Print BOM and certification report etc
  • 20 son accounts

Chapter 19

Video Gallery

Here is a video gallery for all the chapter videos.

This is a simple video manual for you to understand and use this window door software.

Please check the video below:

Moreover, if you have any questions or requirements feel free to let us know. You could chat with us or leave a message below:

=

You could also find us on social:

Share Our Window Design Software: The Definitive Guide To Your Social Media

Scroll to Top

This website uses cookies to ensure you get the best experience on our website.

error: Alert: Content is protected !!
