Heavy Duty 4 Axis Processing Center

Model: Z4-4500

Product Details

Features

Heavy Duty 4 Axis Processing Center Description



This Heavy Duty 4 Axis Processing Center could be drilling, milling, tapping, and Chamfer, suitable for steel, copper, and also aluminum profile.

This machine equips an automatic scrap collection system.

Adopt the BT40 main spindle tapered hole to increase the machine rigidity.

Circular Tool Magazine.

This machine adopts an imported servo motor, ball screw, linear guide rail, and bearing. These could also ensure machine processing more accurate, more stable, and more reliable.

This machine uses high precision linear guide rail, ball screw, rack and pinion, and imported servo motor. These could ensure the movement smoothly and stabilize, and also keep positioning and processing more accuracy.

Customized different models according to your requirements.

Parameters

Voltage 380V/50HZ
Spindle rotary 12000r/min
X-axis speed 60m/min
Y-axis speed 28m/min
Z-axis speed 28m/min
Drilling feed speed 15m/min
X-axis positioning error 0.05mm
Y Z-axis positioning error 0.02mm
Repeat positioning error Ā±0.01mm
Overall dimension (6400~15500)mm x 3000mm x3300mm

Image Gallery

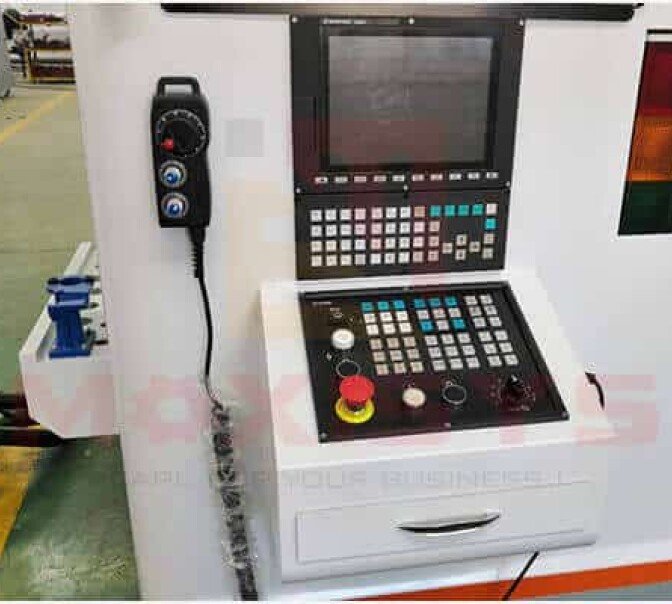

Heavy Duty 4 Axis Processing Center Details 1
+ 6

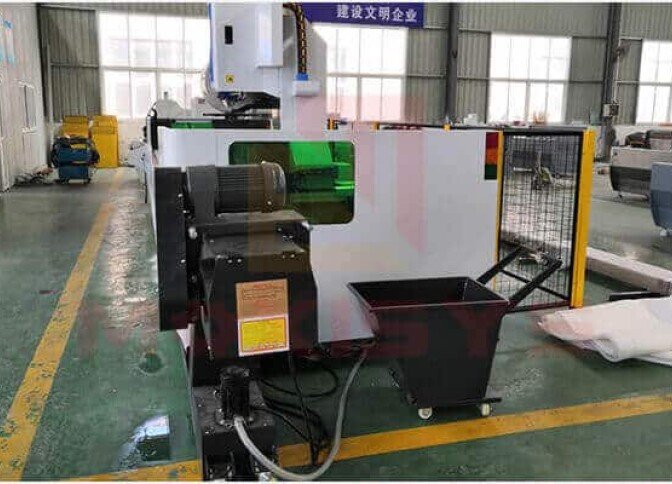

Heavy Duty 4 Axis Processing Center Details 2

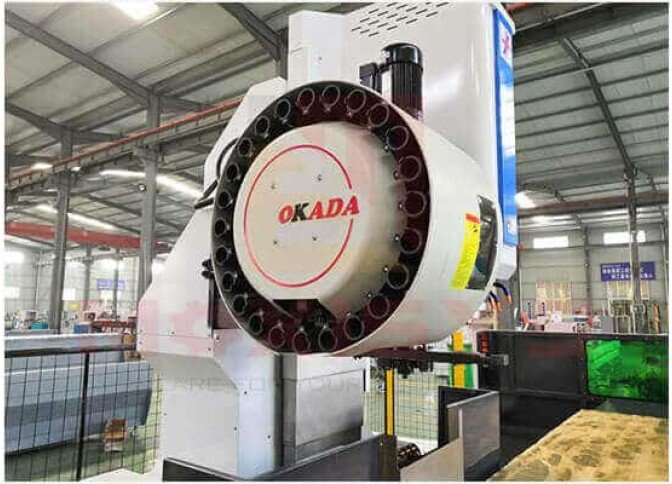

Heavy Duty 4 Axis Processing Center Details 3

FAQs

Normally use nude packing if use FCL. But I suggest you use plate packing or box packing to keep the machines safer. This will need extra charges. But not cost so much and make sure the machine safety.

We can help you to arrange all the things. What you do is just let us know which seaport is near you.

Ā

This should accord which machine you choose and if the machines have stock. Generally speaking, it will be 10-30 days according to a different situation.

Ā

T/T 30% as deposit and 70% balance after the machine ready for delivery. And other payments also available. Please not hesitate to contact us directly for more information.

Ā

We can supply FOB, CIF, and CNF. You can choose a different item according to your condition.

Ā

Yes. sure we can. We will send our experienced engineers to your factory to help you install the machines and train your workers until they produce the standard products.

Ā

12 months. In the period of the guarantee, if there are damages without wrong human operation, we will replace or repair them in free exception of wearing parts and consumptive parts.

Besides the quality machines, we will give our clients all-around services and whole consultancy. Through talking with each other I think as a customer you can truly feel our professional services.

Ā

Moxisys use world famous spare parts on all the machine. one is to guarantee the machine quality and the other is that once the machine spare parts have some problem you can change it easily from your local market.

Ā

They are mechanical processing parts. They are the main structure of the machines. Such as the machinesā€™ head, base and some other parts which consist of the main part of the machine. They like humanā€™s bones supporting the entire machine and coordinate the spare parts work smoothly. And only the good mechanical processing parts coordinate good quality spare parts, then they are called quality machines.

Ā
