CNC Double Head Cutting Machine

Model: LJZ2-CNC-405X4200

Product Details

Features

CNC Double Head Cutting Machine Description



This CNC Double Head Cutting Machine is mainly for the aluminum profile, and also uPVC profile cutting.

The saw head could change automatically between 45Ā° and 90Ā°.

Adopts PLC system. Full-ring control. High cutting accuracy. Also easily change the cutting size.

High accurate spindle motor connects the blade directly. Running smoothly and reliable.

High-accuracy linear bearing guide rail could also keep machine running accuracy in the long term.

Protection cover automatically moving from horizontal direction ( left-right, and also right-left).

Repeat positioning length error ā‰¦Ā±0.2mm.

The Cutting angle error of the CNC Double Head Cutting Machine is Ā±5′

Cutting surface roughness Ral2.5Ī¼.

Cutting surface flatness ā‰¦0.1mm.

It also has a corner connector cutting function.

Parameters

Voltage 380V/50HZ
Input power 4KW
Air resource pressure 0.5-0.8Mpa
Air consumption 200L/min
Rotary speed 2800r/min
Blade specification Ļ†405mm
Cutting profile length 240-4300mm
Cutting profile width Max. 100mm
Cutting profile height Max. 200mm
Cutting angle 45Ā° 90Ā°
Overall dimension 5300mm x 1300mm x1650mm

Image Gallery

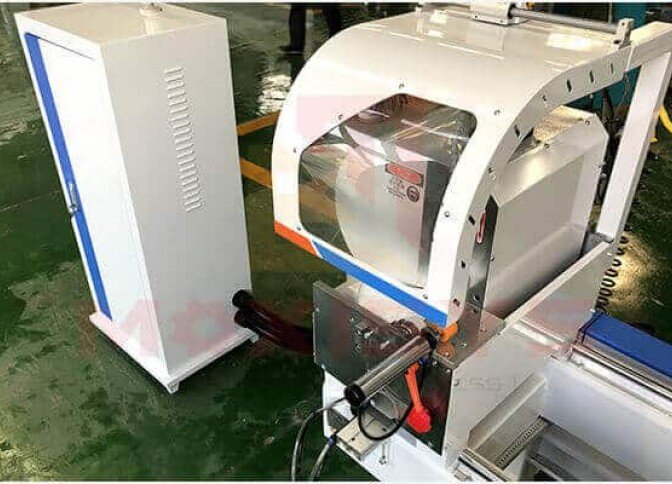

Cnc Double Head Saw 405 Details 1
+ 8

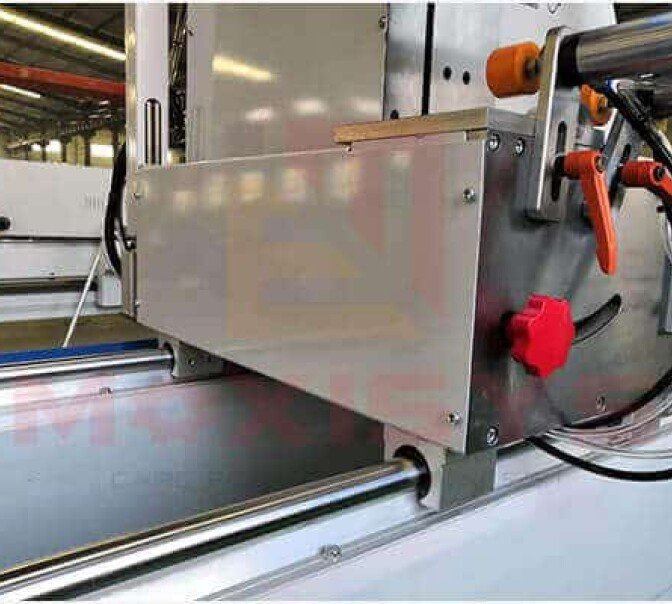

Cnc Double Head Saw 405 Details 2

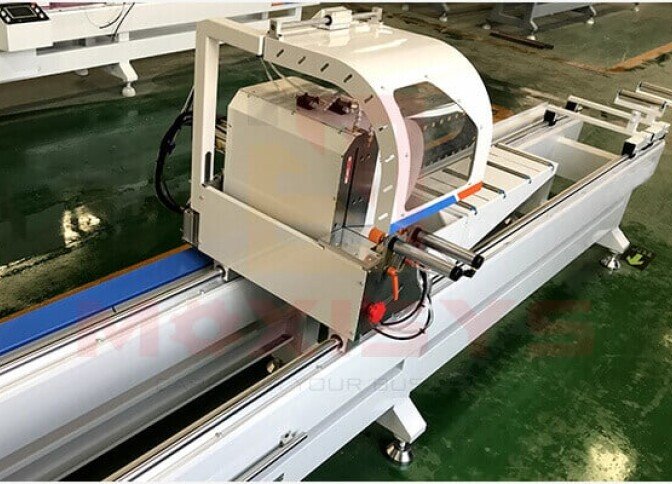

Cnc Double Head Saw 405 Details 3

FAQs

Normally use nude packing if use FCL. But I suggest you use plate packing or box packing to keep the machines safer. This will need extra charges. But not cost so much and make sure the machine safety.

We can help you to arrange all the things. What you do is just let us know which seaport is near you.

Ā

This should accord which machine you choose and if the machines have stock. Generally speaking, it will be 10-30 days according to a different situation.

Ā

T/T 30% as deposit and 70% balance after the machine ready for delivery. And other payments also available. Please not hesitate to contact us directly for more information.

Ā

We can supply FOB, CIF, and CNF. You can choose a different item according to your condition.

Ā

Yes. sure we can. We will send our experienced engineers to your factory to help you install the machines and train your workers until they produce the standard products.

Ā

12 months. In the period of the guarantee, if there are damages without wrong human operation, we will replace or repair them in free exception of wearing parts and consumptive parts.

Besides the quality machines, we will give our clients all-around services and whole consultancy. Through talking with each other I think as a customer you can truly feel our professional services.

Ā

Moxisys use world famous spare parts on all the machine. one is to guarantee the machine quality and the other is that once the machine spare parts have some problem you can change it easily from your local market.

Ā

They are mechanical processing parts. They are the main structure of the machines. Such as the machinesā€™ head, base and some other parts which consist of the main part of the machine. They like humanā€™s bones supporting the entire machine and coordinate the spare parts work smoothly. And only the good mechanical processing parts coordinate good quality spare parts, then they are called quality machines.

Ā
