Aluminum Window Automatic End Milling Machine

Model: LXDB-250W

Product Details

Features

Aluminum Window Automatic End Milling Machine Description



Aluminum Window Automatic End Milling Machine is Suitable for aluminum window profile, and uPVC window profile.

Clamp one-time can process several profiles, which increased the processing efficiency.

Feeding table clamp profile automatically. Feed profile continuously and accurately.

The blade could be adjusted from up and down, front and back. This could also meet different requirements for different profiles.

No need for customized tools when processing various profiles, thus it can decrease cost and save time.

Use the gas-liquid damping cylinder to keep feeding steadily.

Five blades could make any group process any size with one time moving.

This Aluminum Window Automatic End Milling Machine has good performance. It is also very easy to operate and maintain.

Parameters

Voltage 380V/50HZ
Input power 9.35KW
Air resource pressure 0.5-0.8Mpa
Air consumption 150L/min
Motor rotary speed 2800r/min
Worktable travel 0-1050mm
Motor adjusted travel 0-85mm
Blade specification Ļ†250mm
Max. notch height 40mm
Overall dimension 2600mm x 1100mm x1850mm

Image Gallery

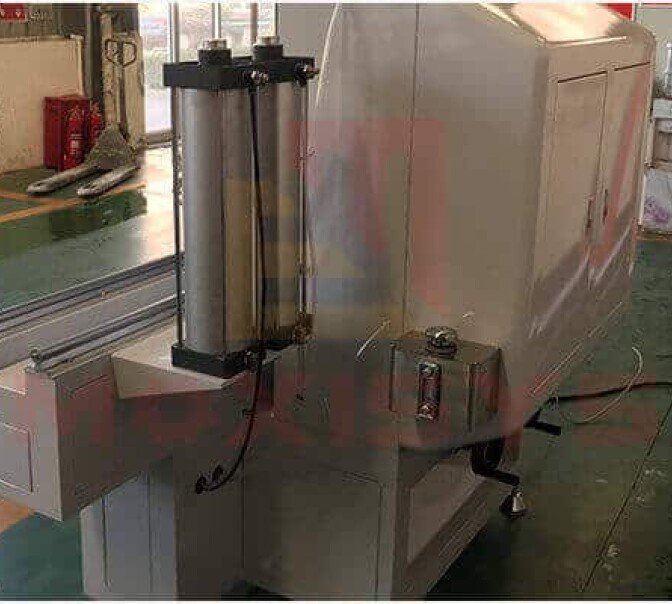

Automatic End Milling Machine Table Move Details 1
+ 6

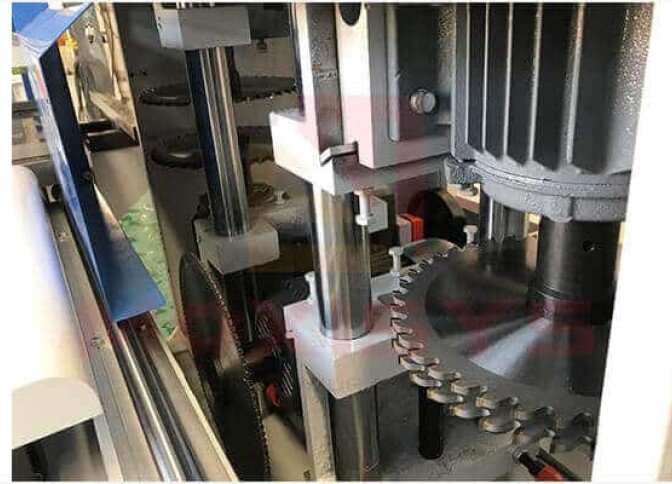

Automatic End Milling Machine Table Move Details 2

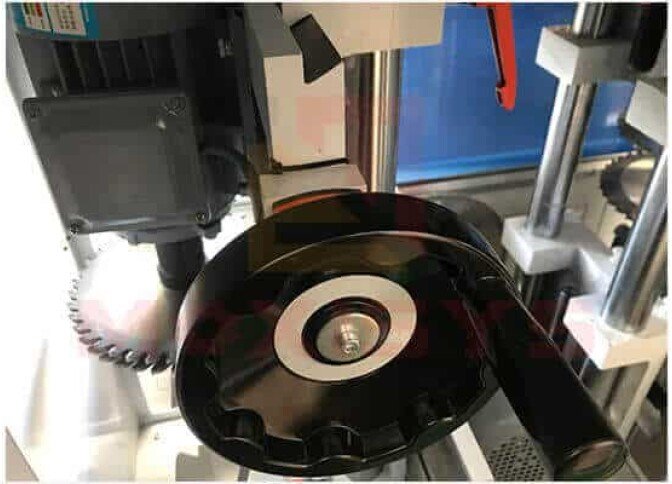

Automatic End Milling Machine Table Move Details 3

FAQs

Normally use nude packing if use FCL. But I suggest you use plate packing or box packing to keep the machines safer. This will need extra charges. But not cost so much and make sure the machine safety.

We can help you to arrange all the things. What you do is just let us know which seaport is near you.

Ā

This should accord which machine you choose and if the machines have stock. Generally speaking, it will be 10-30 days according to a different situation.

Ā

T/T 30% as deposit and 70% balance after the machine ready for delivery. And other payments also available. Please not hesitate to contact us directly for more information.

Ā

We can supply FOB, CIF, and CNF. You can choose a different item according to your condition.

Ā

Yes. sure we can. We will send our experienced engineers to your factory to help you install the machines and train your workers until they produce the standard products.

Ā

12 months. In the period of the guarantee, if there are damages without wrong human operation, we will replace or repair them in free exception of wearing parts and consumptive parts.

Besides the quality machines, we will give our clients all-around services and whole consultancy. Through talking with each other I think as a customer you can truly feel our professional services.

Ā

Moxisys use world famous spare parts on all the machine. one is to guarantee the machine quality and the other is that once the machine spare parts have some problem you can change it easily from your local market.

Ā

They are mechanical processing parts. They are the main structure of the machines. Such as the machinesā€™ head, base and some other parts which consist of the main part of the machine. They like humanā€™s bones supporting the entire machine and coordinate the spare parts work smoothly. And only the good mechanical processing parts coordinate good quality spare parts, then they are called quality machines.

Ā
