CNC Double Head Saw
- Price: Get Latest Price
- Shipping Port: Qingdao Port / According to your request
- Payment: T/T, ACH, Fedwire, SEPA, PayPal, Credit Card
- Packing: Standard Packing
Product Details
Features
CNC Double Head Saw Description
CNC Double Head Saw is suitable for aluminum, UPVC profile cutting with high efficiency.
It could cut 45 and also 90 degrees.
Servo motor control head moving with high accuracy.
The right head could automatically move to any position.
This CNC Double Head Saw could also cut the corner connector and small length profile.
Adopts Japan CNC system, including PLC, servo motor, servo drive, touch screen, Photoelectric switch, power switch. easy to operate, working smoothly and reliably.

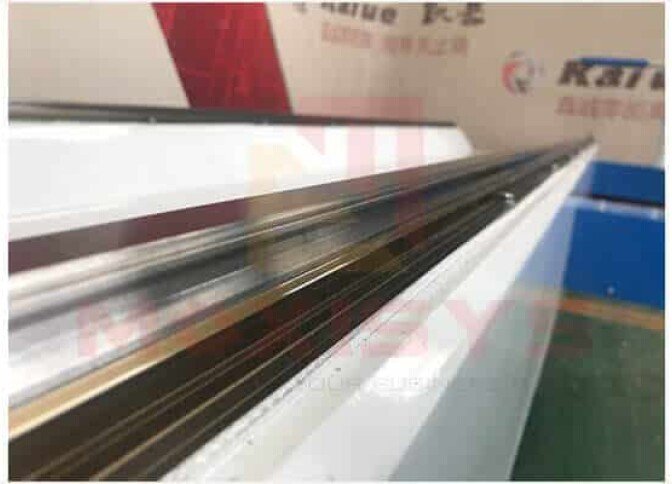

The blade feeding system uses a linear guide rail. high precision and also high stability.
The protective cover could automatically open and close along with the saw blade.
Parameters
| Voltage | 380V/50HZ |
|---|---|
| Input power | 6KW |
| Air resource pressure | 0.5-0.8Mpa |
| Air consumption | 200L/min |
| Rotary speed | 2800r/min |
| Blade specification | φ600mm |
| Cutting profile length | 490-5300mm |
| Cutting profile width | Max. 190mm |
| Cutting profile height | Max. 300mm |
| Cutting angle | 45° 90° |
| Overall dimension | 7000mm x 1900mm x1850mm |

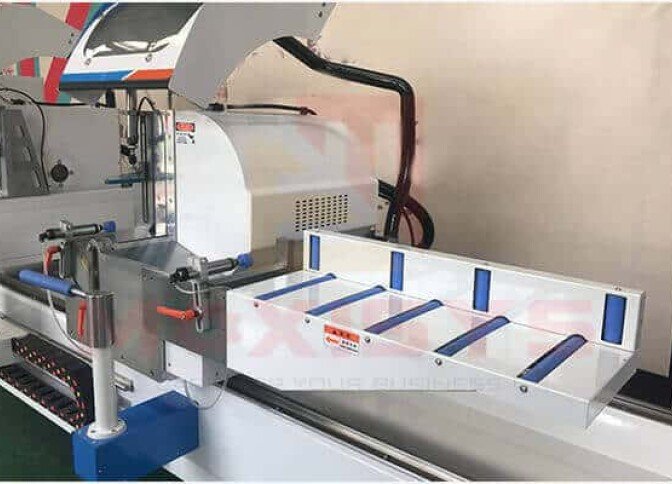

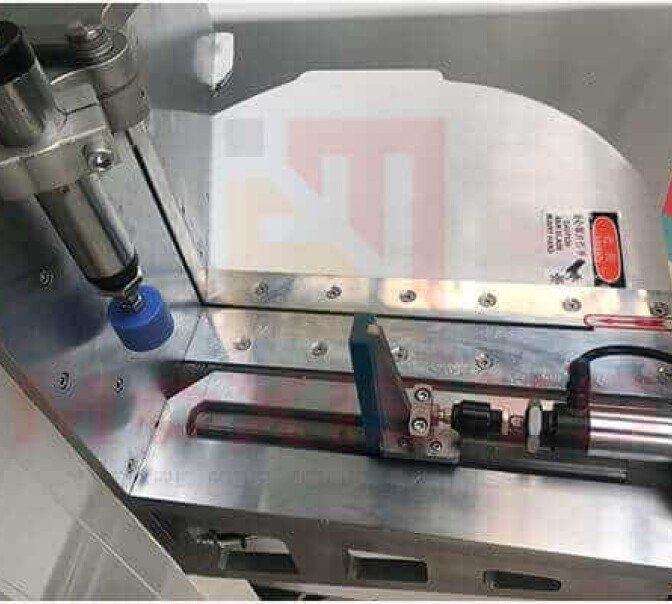

Image Gallery
FAQs
Normally use nude packing if use FCL. But I suggest you use plate packing or box packing to keep the machines safer. This will need extra charges. But not cost so much and make sure the machine safety.
We can help you to arrange all the things. What you do is just let us know which seaport is near you.
Â
This should accord which machine you choose and if the machines have stock. Generally speaking, it will be 10-30 days according to a different situation.
Â
T/T 30% as deposit and 70% balance after the machine ready for delivery. And other payments also available. Please not hesitate to contact us directly for more information.
Â
We can supply FOB, CIF, and CNF. You can choose a different item according to your condition.
Â
Yes. sure we can. We will send our experienced engineers to your factory to help you install the machines and train your workers until they produce the standard products.
Â
12 months. In the period of the guarantee, if there are damages without wrong human operation, we will replace or repair them in free exception of wearing parts and consumptive parts.
Besides the quality machines, we will give our clients all-around services and whole consultancy. Through talking with each other I think as a customer you can truly feel our professional services.
Â
Moxisys use world famous spare parts on all the machine. one is to guarantee the machine quality and the other is that once the machine spare parts have some problem you can change it easily from your local market.
Â
They are mechanical processing parts. They are the main structure of the machines. Such as the machines’ head, base and some other parts which consist of the main part of the machine. They like human’s bones supporting the entire machine and coordinate the spare parts work smoothly. And only the good mechanical processing parts coordinate good quality spare parts, then they are called quality machines.
