CNC Double Head Curve Saw

Model: LMCE-CNC-500

You May Also Like

Product Details

This machine is mainly for the aluminum profile and also UPVC profile cutting.

The saw head could change automatically between 45° and 90°.

The cutting size is controlled by the high precision servo motor. The guide rail uses Taiwan HIWIN which could guarantee the convey accuracy and positioning accuracy.

The right head could move to the set position automatically.

The right head could feed the profile automatically. So it could cut the corner connector and ultrashort profile.

The machine adopts a completely Japanese control system. Including PLC, servo motor, servo driver, touch screen, and also photoelectric switch. Easy to operate and work stable, reliable.

The control system adopts the new closed-loop system and can ensure the accuracy of repeat length.

This machine also can automatically feed the profiles. Can input the cutting data one time. Automatic continuously different cutting size is available.

The saw blade feeding system adopts circular arc motion with high accuracy and stability.

The protective cover could also automatically open and close along with the saw blade feeding.

The machine also has a label printing function (option).

Voltage 380V/50HZ
Input power 5.5KW
Air resource pressure 0.5-0.8Mpa
Blade specification φ 500xφ30×4.4x120T
Cutting profile length 360-4200mm
Cutting profile width Max. 160mm
Cutting profile height Max. 350mm
Cutting angle ±45° 90°
Overall dimension 7000mm x 1300mm x1850mm

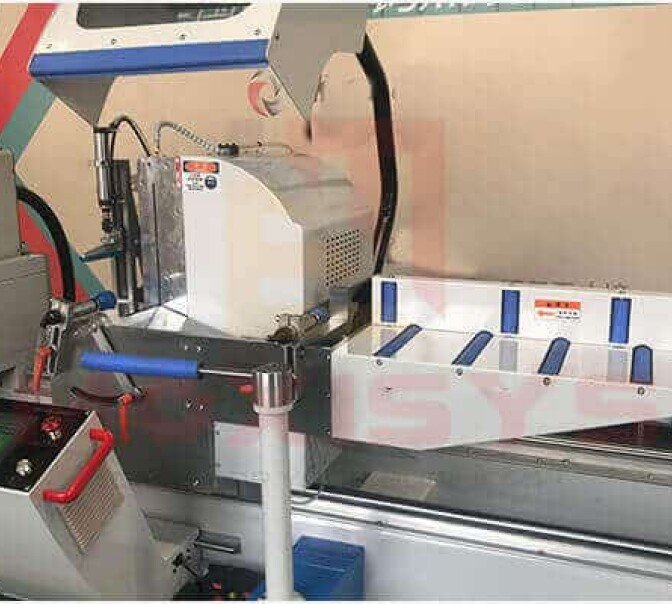

Cnc Double Head Curve Saw Details 1
+ 8

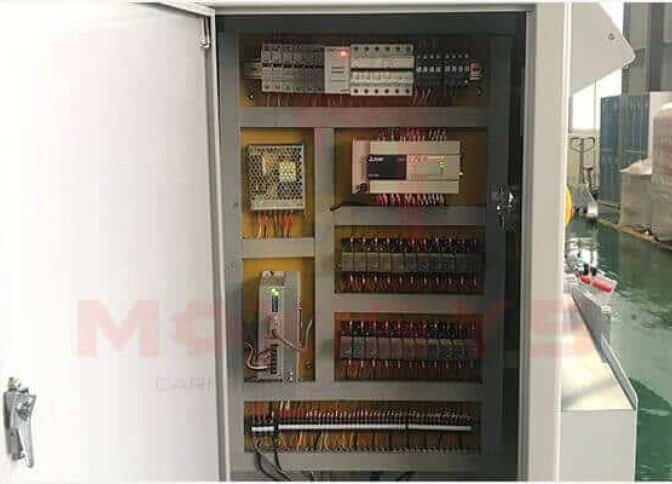

Cnc Double Head Curve Saw Details 2
Cnc Double Head Curve Saw Details 3

Normally use nude packing if use FCL. But I suggest you use plate packing or box packing to keep the machines safer. This will need extra charges. But not cost so much and make sure the machine safety.

We can help you to arrange all the things. What you do is just let us know which seaport is near you.



This should accord which machine you choose and if the machines have stock. Generally speaking, it will be 10-30 days according to a different situation.



T/T 30% as deposit and 70% balance after the machine ready for delivery. And other payments also available. Please not hesitate to contact us directly for more information.



We can supply FOB, CIF, and CNF. You can choose a different item according to your condition.



Yes. sure we can. We will send our experienced engineers to your factory to help you install the machines and train your workers until they produce the standard products.



12 months. In the period of the guarantee, if there are damages without wrong human operation, we will replace or repair them in free exception of wearing parts and consumptive parts.

Besides the quality machines, we will give our clients all-around services and whole consultancy. Through talking with each other I think as a customer you can truly feel our professional services.



Moxisys use world famous spare parts on all the machine. one is to guarantee the machine quality and the other is that once the machine spare parts have some problem you can change it easily from your local market.



They are mechanical processing parts. They are the main structure of the machines. Such as the machines’ head, base and some other parts which consist of the main part of the machine. They like human’s bones supporting the entire machine and coordinate the spare parts work smoothly. And only the good mechanical processing parts coordinate good quality spare parts, then they are called quality machines.
