Aluminum Single Head Corner Crimping Machine

Model: LMB-160D

Product Details

Features

Aluminum Single Head Corner Crimping Machine Description



This Aluminum Single Head Corner Crimping Machine is suitable for the aluminum frame which uses the corner connector.

For 90 degree connection.

Before crimping, put the corner connecter into the profile chamber. After the positioning clamping, the crimping blade will punch the profile and make it cold deformation permanently.

The inside positioning system is smarter. It could also lift up and down, and also horizontal move. The automation is higher and also very suitable for bigger window door making.

Aluminum Single Head Corner Crimping Machine uses the dislocation crimping blade holder. And could also process different profiles without changing the blade.

Adopt a new crimping blade changing system. Easy to change and save more time.

The distance between the crimping blade and profile could be adjusted arbitrarily. This will keep the crimping more accurate.

Parameters

Voltage 380V/50HZ
Input power 3KW
Air resource pressure 0.5-0.8Mpa
Punching pressure 15Mpa
Oil tank 40L
Profile Max. height 160mm
Overall dimension 1200mm x 1100mm x1300mm

Image Gallery

Single Head Corner Crimping Machine 160D Details 1
+ 6
Single Head Corner Crimping Machine 160D Details 2

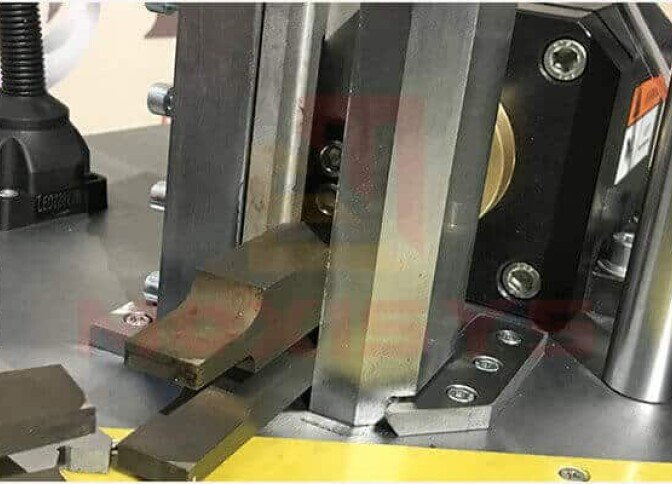

Single Head Corner Crimping Machine 160D Details 3

FAQs

Normally use nude packing if use FCL. But I suggest you use plate packing or box packing to keep the machines safer. This will need extra charges. But not cost so much and make sure the machine safety.

We can help you to arrange all the things. What you do is just let us know which seaport is near you.

Ā

This should accord which machine you choose and if the machines have stock. Generally speaking, it will be 10-30 days according to a different situation.

Ā

T/T 30% as deposit and 70% balance after the machine ready for delivery. And other payments also available. Please not hesitate to contact us directly for more information.

Ā

We can supply FOB, CIF, and CNF. You can choose a different item according to your condition.

Ā

Yes. sure we can. We will send our experienced engineers to your factory to help you install the machines and train your workers until they produce the standard products.

Ā

12 months. In the period of the guarantee, if there are damages without wrong human operation, we will replace or repair them in free exception of wearing parts and consumptive parts.

Besides the quality machines, we will give our clients all-around services and whole consultancy. Through talking with each other I think as a customer you can truly feel our professional services.

Ā

Moxisys use world famous spare parts on all the machine. one is to guarantee the machine quality and the other is that once the machine spare parts have some problem you can change it easily from your local market.

Ā

They are mechanical processing parts. They are the main structure of the machines. Such as the machinesā€™ head, base and some other parts which consist of the main part of the machine. They like humanā€™s bones supporting the entire machine and coordinate the spare parts work smoothly. And only the good mechanical processing parts coordinate good quality spare parts, then they are called quality machines.

Ā
